CUAS

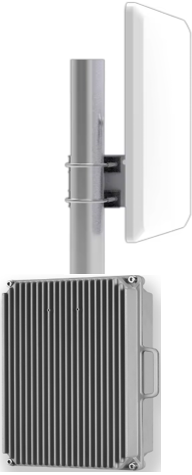

WJ500-6GHz is designed to deny WiFi7 devices and FPV drones operating in the 5.925GHz-7.125GHz up to a distance of 500m with directional antenna.
WJ300 enables spatial-diversity disruption to RF controlled drones in urban environment for omni-directional up to a distance of 300m.
Cellular

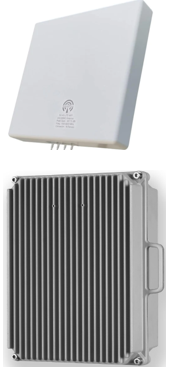

WJ300-X is a multi-role SDR emitter capable of performing denial-of-service against cellular drones and phones. It support for omni-directional up to a distance of 300m.
-
5925-6100MHz, 50W (extendable from 5.9GHz)
6000-6500MHz, 50W
6500-7000MHz, 50W
7000-7125MHz, 50W (extendable to 7.5GHz)
-
5.9-7.125GHz: 21dBi
-
Above 6GHz disruption
Safety feature to prevent inadvertent disruption
Silent operation with fan-less design
-
Main Unit: 370(H) x 332(W) x 137(D)mm
Dir Antenna: 320(Dia) x 320(H) x 25(D)mm
2x Power Supply: 2x 262(L) x 125(W) x 43.8(H)mm
-
Main Unit: 12kg
Dir Antenna: 2kg
2x Power Supply: 2x 2.8kg
-
433MHz: 410-450MHz, 10W
915MHz: 902-928MHz, 10W
2.4GHz: 2400-2483.5MHz, 20W
5.2GHz: 5150-5250MHz, 20W
5.8GHz: 5725-5850MHz, 20W
70-500MHz, 5W (Amplifier rated at 8W)
-
433MHz & 915MHz: 0dBi
2.4GHz & 5.2GHz & 5.8GHz: 4dBi
70-500MHz: 0dBi
-
Safety feature to prevent inadvertent jamming
Silent operation with fan-less design
-
Main Unit: 370(H) x 332(W) x 137(D)mm
Antenna#1: 300(H) x 32(Dia)mm
Antenna#2: 180(H) x 20(Dia)mm
Antenna#3: 1000(H) x 32(Dia)mm
Power Supply: 262(L) x 125(W) x 43.8(H)mm
-
Main Unit: 12kg
Antenna#1: 0.3kg
Antenna#2: 0.1kg
Antenna#3: 1.2kg
Power Supply: 2.8kg
-
4x 700-6000MHz, 4W (Psat: 16W)
-
5-8dBi, 4×4 MIMO
-
Cellular Protocol-Manipulated Waveform
LTE: DOS/Phantom-Disable/CMAS
NR: Access Barred
Waveform Programmable and User configurable power level and frequency
Silent operation with fan-less design
-
Main Unit: 370(H) x 332(W) x 137(D)mm
Directional Antenna: 363(H) x 363(W) x 58(D)mm
Power Supply: 262(L) x 125(W) x 43.8(H)mm
-
Main Unit: <13kg
Directional Antenna: 2kg
Power Supply: 2.8kg
